DIN EN 856/SAE 100 R 13

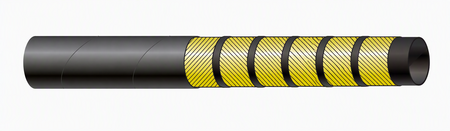

Multispiral hydraulic hose acc. to EN 856 / SAE 100 R13 – MSHA approved
General
Tube
Synthetic rubber, resistant against hydraulic fluids (HL, HLP, HLPD, HVLP, HFA, HFAS, HFB, HFC)
Reinforcement
Four spiral layers DN19 – DN25 and six spiral layers DN32 – DN51 of high tensile steel wire
Cover
Abrasion and ozone resistant synthetic rubber – MSHA approved
Note: various covers available
Temperature range
-40°C to 121°C / -40°F to +250°F
Standard branding
Mylar tape
Technical details
| Nominell | Innen -Ø | Spiral-Ø | Außen-Ø | Betriebsdruck (max.) | Min. Berstdruck | Biegeradius (min.) | Gewicht ca. | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | Zoll | dash | mm | Zoll | mm | Zoll | mm | Zoll | bar | psi | bar | psi | mm | Zoll | lbs/ft | kg/m |
| 19 | 3/4 | -12 | 19,5 | 0,77 | 28,6 | 1,13 | 31,7 | 1,25 | 350 | 5075 | 1400 | 20300 | 240 | 9,4 | 0,97 | 1,44 |
| 25 | 1 | -16 | 25,9 | 1,02 | 35,4 | 1,39 | 38,2 | 1,50 | 350 | 5075 | 1400 | 20300 | 300 | 11,8 | 1,34 | 1,99 |
| 31 | 1-1/4 | -20 | 32,5 | 1,28 | 46,9 | 1,84 | 50,5 | 1,99 | 350 | 5075 | 1400 | 20300 | 420 | 16,5 | 2,64 | 3,93 |
| 38 | 1-1/2 | -24 | 38,7 | 1,52 | 53,9 | 2,12 | 57,4 | 2,26 | 350 | 5075 | 1400 | 20300 | 500 | 19,7 | 3,31 | 4,93 |
| 51 | 2 | -32 | 51,1 | 2,01 | 67,9 | 2,67 | 71,5 | 2,81 | 350 | 5075 | 1400 | 20300 | 630 | 24,8 | 4,64 | 6,90 |
