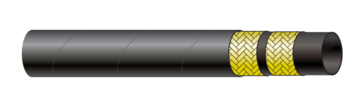

Lifthose
Hydraulic hose for lift and elevator applications; pressures comply with EN 81-2
General
Tube
Synthetic rubber, resistant against hydraulic fluids (HL, HLP, HLPD, HVLP, HFA, HFAS, HFB, HFC)
Reinforcement
One braid DN19 – DN31 and two braids DN38 – DN51 of high tensile steel wire
Cover
Abrasion and ozone resistant synthetic rubber
Note: various covers available
Temperature range
-40°C to 100°C / -40°F to +212°F (max 120°C / 248°F intermittent)
Standard branding
Embossed tape
Technical details
| Nominell | Innen -Ø | Geflecht-Ø | Außen-Ø | Betriebsdruck (max.) | Min. Berstdruck | Biegeradius (min.) | Gewicht ca. | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | Zoll | dash | mm | Zoll | mm | Zoll | mm | Zoll | bar | psi | bar | psi | mm | Zoll | lbs/ft | kg/m |
| 19 | 3/4 | -12 | 19,5 | 0,77 | 25,0 | 0,98 | 27,1 | 1,07 | 50 | 725 | 400 | 5800 | 240 | 9,4 | 0,38 | 0,56 |
| 25 | 1 | -16 | 26,0 | 1,02 | 31,0 | 1,22 | 33,2 | 1,31 | 50 | 725 | 400 | 5800 | 160 | 6,3 | 0,50 | 0,74 |
| 31 | 1-1/4 | -20 | 32,5 | 1,28 | 40,2 | 1,58 | 43,7 | 1,72 | 50 | 725 | 400 | 5800 | 300 | 11,8 | 0,86 | 1,28 |
| 38 | 1-1/2 | -24 | 38,7 | 1,52 | 51,1 | 2,01 | 54,5 | 2,14 | 45 | 655 | 360 | 5220 | 500 | 19,7 | 1,46 | 2,17 |
| 51 | 2 | -32 | 51,1 | 2,01 | 62,9 | 2,47 | 66,7 | 2,63 | 40 | 580 | 320 | 4640 | 630 | 24,8 | 1,88 | 2,79 |
