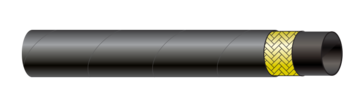

Sempercold 1SN
Wire braid hydraulic hose meets EN 853 1SN, SAE 100R1 and ISO 1436 1SN with temperature range down to -50°C / -58°F
General
Tube
Synthetic rubber, resistant against hydraulic fluids (HL, HLP, HLPD, HVLP, HFA, HFAS, HFB, HFC)
Reinforcement
One braid of high tensile steel wire
Cover
Abrasion and ozone resistant synthetic rubber
Temperature range
-50°C to 100°C / -58°F to +212°F
Standard branding
Embossed tape
Technical details
| Nominell | Innen -Ø | Geflecht-Ø | Außen-Ø | Betriebsdruck (max.) | Min. Berstdruck | Biegeradius (min.) | Gewicht ca. | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | Zoll | dash | mm | Zoll | mm | Zoll | mm | Zoll | bar | psi | bar | psi | mm | Zoll | lbs/ft | kg/m |
| 6 | 1/4 | -4 | 6,6 | 0,26 | 10,8 | 0,43 | 12,9 | 0,51 | 225 | 3265 | 900 | 13060 | 100 | 3,9 | 0,12 | 0,18 |
| 8 | 5/16 | -5 | 8,3 | 0,32 | 12,5 | 0,49 | 14,7 | 0,58 | 215 | 3120 | 860 | 12480 | 115 | 4,5 | 0,15 | 0,22 |
| 10 | 3/8 | -6 | 9,9 | 0,39 | 14,8 | 0,58 | 16,7 | 0,66 | 180 | 2610 | 720 | 10440 | 125 | 4,9 | 0,19 | 0,29 |
| 12 | 1/2 | -8 | 13,0 | 0,51 | 17,9 | 0,70 | 19,9 | 0,78 | 160 | 2320 | 640 | 9280 | 180 | 7,1 | 0,24 | 0,36 |
| 16 | 5/8 | -10 | 16,4 | 0,65 | 21,0 | 0,83 | 23,2 | 0,91 | 130 | 1885 | 520 | 7540 | 200 | 7,9 | 0,28 | 0,42 |
| 19 | 3/4 | -12 | 19,5 | 0,77 | 25,0 | 0,98 | 27,1 | 1,07 | 105 | 1525 | 420 | 6100 | 240 | 9,4 | 0,36 | 0,53 |
| 25 | 1 | -16 | 26,0 | 1,02 | 32,9 | 1,30 | 35,1 | 1,38 | 88 | 1275 | 352 | 5100 | 300 | 11,8 | 0,55 | 0,82 |
| 31 | 1-1/4 | -20 | 32,5 | 1,28 | 39,9 | 1,57 | 42,5 | 1,67 | 63 | 915 | 252 | 3660 | 420 | 16,5 | 0,70 | 1,04 |
