Flexline Plus

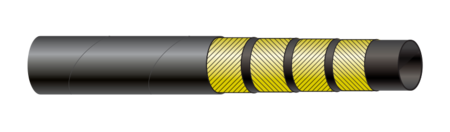

The high flexible multi-spiral compact hydraulic hose with reduced bend radii and increased working pressure exceeds performance of EN856 4SP and 4SH
General
Tube
Synthetic rubber, resistant against hydraulic fluids (HL, HLP, HLPD, HVLP, HFA, HFAS, HFB, HFC) and bio-degradable hydraulic fluids
Reinforcement
Four high tensile steel wire
Cover
Abrasion and ozone resistant synthetic rubber
MSHA, SemperRock and SemperShield (DN10-DN25) cover available
Temperature range
-40°C to 100°C / -40°F to +212°F (max 120°C / 248°F intermittent)
Standard branding
Mylar tape
Note
Impulse tested up to 1 million cycles (tested acc. to ISO6803:2017)
Technical details
| Nominell | Innen -Ø | Spiral-Ø | Außen-Ø | Betriebsdruck (max.) | Min. Berstdruck | Biegeradius (min.) | Gewicht ca. | Anforderungen nach EN856 4SP/4SH | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Typ | Betriebsdruck | Biegeradius | |||||||||||||||||
| mm | Zoll | dash | mm | Zoll | mm | Zoll | mm | Zoll | bar | psi | bar | psi | mm | Zoll | lbs/ft | kg/m | bar | mm | |
| 10 | 3/8 | -6 | 9,9 | 0,39 | 17,7 | 0,70 | 20,2 | 0,79 | 470 | 6815 | 1880 | 27260 | 60 | 2,4 | 0,46 | 0,69 | Exceeds 4SP | 445 | 180 |
| 12 | 1/2 | -8 | 13,0 | 0,51 | 20,6 | 0,81 | 22,9 | 0,90 | 470 | 6815 | 1880 | 27260 | 85 | 3,3 | 0,53 | 0,79 | Exceeds 4SP | 415 | 230 |
| 16 | 5/8 | -10 | 16,4 | 0,65 | 25,0 | 0,98 | 27,2 | 1,07 | 470 | 6815 | 1880 | 27260 | 100 | 3,9 | 0,79 | 1,17 | Exceeds 4SH | 420 | 200 |
| 19 | 3/4 | -12 | 19,5 | 0,77 | 28,3 | 1,11 | 30,5 | 1,20 | 450 | 6525 | 1800 | 26100 | 120 | 4,7 | 0,91 | 1,36 | Exceeds 4SH | 420 | 280 |
| 25 | 1 | -16 | 25,9 | 1,02 | 35,4 | 1,39 | 37,5 | 1,48 | 440 | 6380 | 1760 | 25520 | 150 | 5,9 | 1,30 | 1,94 | Exceeds 4SH | 380 | 340 |
| 31 | 1-1/4 | -20 | 32,5 | 1,28 | 43,5 | 1,71 | 47,3 | 1,86 | 370 | 5365 | 1480 | 21460 | 210 | 8,3 | 1,81 | 2,70 | Exceeds 4SH | 325 | 460 |
| 38 | 1-1/2 | -24 | 38,7 | 1,52 | 49,2 | 1,94 | 53,4 | 2,10 | 320 | 4640 | 1280 | 18560 | 250 | 9,8 | 2,22 | 3,31 | Exceeds 4SH | 290 | 560 |
| 51 | 2 | -32 | 51,1 | 2,01 | 64,3 | 2,53 | 68,0 | 2,68 | 280 | 4060 | 1120 | 16240 | 390 | 15,4 | 2,97 | 4,42 | Exceeds 4SH | 250 | 700 |
