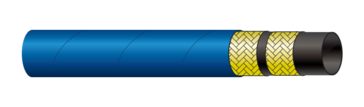

SAE 100 R19
Compact hydraulic hose construction acc. to SAE 100 R19, exceeds ISO 18752 AC
General
Tube
Synthetic rubber, resistant against hydraulic fluids (HL, HLP, HLPD, HVLP, HFA, HFAS, HFB, HFC)
Reinforcement
Two braids of high tensile steel wire
Cover
Abrasion and ozone resistant synthetic rubber
Note: various covers available
Temperature range
-40°C to 100°C / -40°F to +212°F (max 120°C / 248°F intermittent)
Standard branding
Embossed tape
Technical details
| Nominell | Innen -Ø | Geflecht-Ø | Außen-Ø | Betriebsdruck (max.) | Min. Berstdruck | Biegeradius (min.) | Gewicht ca. | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | Zoll | dash | mm | Zoll | mm | Zoll | mm | Zoll | bar | psi | bar | psi | mm | Zoll | lbs/ft | kg/m |
| 6 | 1/4 | -4 | 6,6 | 0,26 | 11,9 | 0,47 | 13,9 | 0,55 | 280 | 4060 | 1120 | 16240 | 50 | 2,0 | 0,22 | 0,32 |
| 10 | 3/8 | -6 | 9,9 | 0,39 | 15,1 | 0,59 | 17,0 | 0,67 | 280 | 4060 | 1120 | 16240 | 65 | 2,6 | 0,26 | 0,39 |
| 12 | 1/2 | -8 | 13,0 | 0,51 | 18,3 | 0,72 | 20,5 | 0,81 | 280 | 4060 | 1120 | 16240 | 90 | 3,5 | 0,32 | 0,48 |
| 16 | 5/8 | -10 | 16,4 | 0,65 | 22,1 | 0,87 | 24,0 | 0,94 | 280 | 4060 | 1120 | 16240 | 100 | 3,9 | 0,46 | 0,68 |
| 19 | 3/4 | -12 | 19,5 | 0,77 | 26,0 | 1,02 | 27,6 | 1,09 | 280 | 4060 | 1120 | 16240 | 120 | 4,7 | 0,59 | 0,88 |
