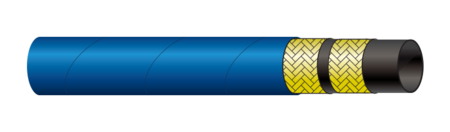

High Temp Hose 2HT
Wire braid hydraulic hose with hot oil resistant liner, suitable for compressor applications
General
Tube
Synthetic rubber, resistant against hot oil, hydraulic fluids (HL, HLP, HLPD, HVLP, HFA, HFAS, HFB, HFC), mineral and synthetic oils (up to 135°C / 275°F)
Glycols, polyglycols and aqueous oil emulsions (up to 100°C / 212°F)
Reinforcement
Two braids of high tensile steel wire
Cover
Heat, abrasion and ozone resistant synthetic rubber; available with blue cover -
accepted by MSHA
Temperature range
-40°C to 135°C / -40°F to +275°F (up to 150°C / 300°F peak temperatures)
Standard branding
White ink-jet branding (Optional: embossed branding)
Technical details
| Nominal | Internal-Ø | Braid-Ø | External-Ø | Work. pressure (max.) | Min. burst pressure | Bending radius (min.) | Weight approx. | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | dash | mm | inch | mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | lbs/ft | kg/m |
| 6 | 1/4 | -4 | 6.6 | 0.26 | 12.8 | 0.50 | 15.1 | 0.59 | 400 | 5800 | 1600 | 23200 | 100 | 3.9 | 0.25 | 0.37 |
| 8 | 5/16 | -5 | 8.3 | 0.32 | 14.4 | 0.57 | 16.6 | 0.65 | 350 | 5075 | 1400 | 20300 | 115 | 4.5 | 0.28 | 0.41 |
| 10 | 3/8 | -6 | 9.9 | 0.39 | 16.9 | 0.67 | 19.0 | 0.75 | 330 | 4785 | 1320 | 19140 | 130 | 5.1 | 0.38 | 0.56 |
| 12 | 1/2 | -8 | 13.0 | 0.51 | 20.1 | 0.79 | 22.3 | 0.88 | 275 | 3990 | 1100 | 15960 | 180 | 7.1 | 0.45 | 0.67 |
| 16 | 5/8 | -10 | 16.4 | 0.64 | 23.3 | 0.92 | 25.5 | 1.00 | 250 | 3625 | 1000 | 14500 | 200 | 7.9 | 0.53 | 0.79 |
| 19 | 3/4 | -12 | 19.5 | 0.77 | 27.4 | 1.08 | 29.6 | 1.16 | 215 | 3120 | 860 | 12480 | 240 | 9.4 | 0.66 | 0.98 |
| 25 | 1 | -16 | 26.0 | 1.02 | 35.3 | 1.39 | 37.8 | 1.49 | 165 | 2395 | 660 | 9580 | 300 | 11.8 | 0.95 | 1.41 |
Impulse tested up to 200.000 cycles (tested acc. to ISO6803 / 135°C DN6 / 8: WP * 1,1 / DN10 – 25: WP * 1,33)
