SBP

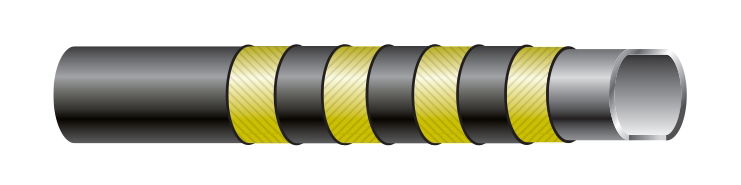

Peristaltic pump hose
Specifications
Application
SBP is a special designed longlasting hose for the usage in peristaltic pumps.
Feature
Reinforcement package with various rubber interlayer to ensure a very good bonding between the layers and a good suction lift.
Antistatic construction prevents the build-up of static electricity.
Temperature range
-35°C / +80°C.
Tube
NR/BR, black, abrasion resistant, antistatic, smooth.
Reinforcement
Textile wrapped.
Cover
NR/BR, black, antistatic, cloth impression.
Marking
On customer request
Notice
Wall thickness and hose length according customer specification.
Other sizes between 6,0 - 125mm available on request.
Cover surface is suitable for grinding as well.
Suitable for ATEX equipment.
Technical details
| Article number | Internal-Ø | Wall width | External-Ø | Work. pressure (max.) | Min. burst pressure | Number of inserts | Coil length (max.) |
|---|---|---|---|---|---|---|---|
| mm | mm | mm | bar | bar | m | ||
| 64xxx 06xx | 6.0 | 16 | 64 | 2 | 6 | ||
| 64xxx 10xx | 10.0 | 16 | 64 | 2 | 6 | ||
| 64xxx 15xx | 15.0 | 16 | 64 | 2 | 6 | ||
| 64xxx 20xx | 20.0 | 16 | 64 | 2 | 6 | ||
| 64xxx 25xx | 25.0 | 16 | 64 | 4 | 6 | ||
| 64xxx 32xx | 32.0 | 16 | 64 | 4 | 6 | ||
| 64xxx 38xx | 38.0 | 16 | 64 | 4 | 6 | ||
| 64xxx 40xx | 40.0 | 16 | 64 | 4 | 6 | ||
| 64xxx 50xx | 50.0 | 16 | 64 | 4 | 6 | ||
| 64xxx 60xx | 60.0 | 16 | 64 | 4 | 6 | ||
| 64xxx 65xx | 65.0 | 16 | 64 | 4 | 6 | ||
| 64xxx 80xx | 80.0 | 16 | 64 | 4 | 6 | ||
| 64xxx 00xx | 100.0 | 16 | 64 | 6 | 6 | ||
| 64xxx 12xx | 125.0 | 16 | 64 | 6 | 6 |
