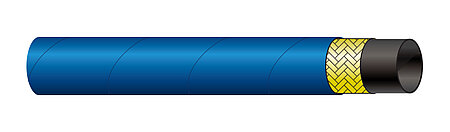

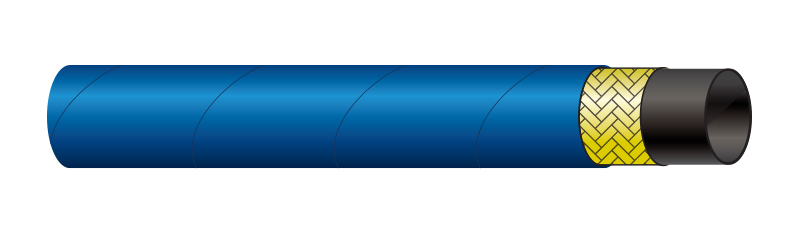

Snow Gun Hose - 40 bar - D

Specifications

Application

Snow gun hose offering a flexible connection between reservoir and snow gun.

Feature

Extremely long service life due to abrasion and ozone resistant rubber quality of the cover.

Temperature range

-35°C / +80°C.

Safety factor

2,5 : 1

Tube

SBR, black, smooth.

Reinforcement

Textile wrapped.

Cover

CSM, blue, resistant to ozone and weather, abrasion resistant, cloth impression.

Marking

none.

Notice

Also available with black CR cover and/or steel wire braided reinforcement (on request).

Technical details

Article number Internal-Ø Wall width External-Ø Work. pressure (max.) Number of inserts Bending radius (min.) Weight approx. Coil length (max.)
mm inch mm mm bar mm kg/m m
48326 387038.11 1/27.052.14041451.2440
48326 517550.827.566.04042001.4040
48326 657065.07.079.04042601.9040
