Specifications
Application
A heavy duty delivery hose for use with various (concentrated) acids and chemicals.
Also suitable for many industrial liquids, sea water and chemical fertilisers.
Standard/Approval
EN 12115:2021, TRbF 131/2:1992. Cover meets UL94 HB.
Temperature range
Tube depending on the flow medium up to +70°C. Hose flexible down to -20°C. Steam cleaning without pressure up to 130°C / max. 30 min.
Safety factor
4 : 1

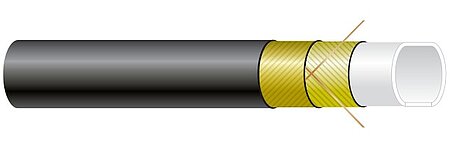

Tube
XLPE, transparent, isolating, smooth.
Reinforcement
Textile, 2 crossed copper wires.
Cover
EPDM, black, resistant to ozone and weather, abrasion resistant, electrically conductive, cloth impression.
Marking
continuous mylartape, white letters, blue tape: "SEMPERIT (S) FLEXICHEM XLPE WP 16 bar MADE IN EU//////", as well as continuous embossed tape: "SEMPERIT (S) FLEXICHEM XLPO EN 12115:2021 TRbF 131/2 D NW .. PN 16 bar M XQ/YY".
Notice
ATTENTION: The temperature of the medium must be lower than its boiling point.
ATTENTION: Please refer to the Semperit resistance list or, in case of doubt, contact Semperit.
ATTENTION: Continuous use at the peak values reduces the service life.
ATTENTION: To ensure the assembly is leakproof, it must be tested according to EN 12115:2021.
Technical details
Article number | Internal-Ø | Wall width | External-Ø | Work. pressure (max.) | Number of inserts | Bending radius (min.) | Weight approx. | Coil length (max.) | |
---|---|---|---|---|---|---|---|---|---|
mm | inch | mm | mm | bar | mm | kg/m | m | ||
64370 1960 | 19.0 | 3/4 | 6.0 | 31.0 | 16 | 2 | 125 | 0.50 | 40 |
64370 2560 | 25.0 | 1 | 6.0 | 37.0 | 16 | 2 | 150 | 0.65 | 40 |
64370 3260 | 32.0 | 1 1/4 | 6.0 | 44.0 | 16 | 2 | 175 | 0.80 | 40 |
