Specifications
Application

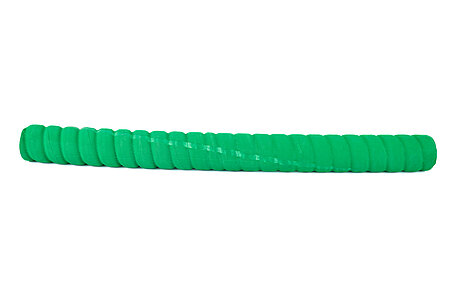

CHEM U CORR green has been specially developed for use in tankers used to transport chemicals.
Suitable for the transport of acids, alkalis, salts, organic compounds (alcohols, esters, ketones, etc.) incl. aromatic substances, chlorinated hydrocarbons and oxidising acids (see our chemical resistance list).
Feature
The UHMWPE tube has an extremely low friction coefficient and good abrasion resistance.
Very robust but also extremely flexible, due to special spiral design.
Temperature range
Tube depending on the flow medium to +250°F, but always below boiling point. Hose flexible down to -31°F. Steam cleaning without pressure up to +266°F / max. 30 min.
Safety factor
4 : 1

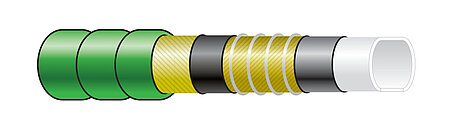

Tube
UHMWPE, black, electrically conductive, smooth.
Reinforcement
Textile wrapped, zinc plated steel wire double helix.
Cover
EPDM, green, resistant to ozone and weather, abrasion resistant, flat corrugated with cloth impression.
Marking
according customer request.
Notice
ATTENTION: The temperature of the medium must be lower than its boiling point.
ATTENTION: Please refer to the Semperit resistance list or, in case of doubt, contact Semperit.
ATTENTION: Continuous use at the peak values reduces the service life.
On request also available with transparent insulating UHMWPE tube
Technical details
| Article number | Internal-Ø | Wall width | External-Ø | Work. pressure (max.) | Number of inserts | Bending radius (min.) | Weight approx. | Coil length (max.) | |
|---|---|---|---|---|---|---|---|---|---|
| mm | inch | mm | mm | bar | mm | kg/m | m | ||
| 64371 1960 | 19.0 | 3/4 | 6.0 | 31 | 16 | 2 | 100 | 0.70 | 40 |
| 64371 2560 | 25.04 | 1 | 6.0 | 37.0 | 16 | 2 | 125 | 0.90 | 40 |
| 64371 3260 | 32.0 | 1 1/4 | 6.0 | 44.0 | 16 | 2 | 160 | 1.10 | 40 |
| 64371 3860 | 38.0 | 1 1/2 | 6.0 | 50.0 | 16 | 2 | 190 | 1.25 | 40 |
| 64371 5170 | 50.8 | 2 | 7.0 | 64.8 | 16 | 2 | 250 | 1.85 | 40 |
| 64371 6380 | 63.5 | 2 1/2 | 8.0 | 79.5 | 16 | 2 | 320 | 2.65 | 40 |
| 64371 7680 | 76.2 | 3 | 8.0 | 92.4 | 10 | 2 | 380 | 3.15 | 40 |
| 64371 1085 | 101.6 | 4 | 8.5 | 117.6 | 10 | 4 | 510 | 4.20 | 40 |
Vacuum resistance up to -0,9bar
