GOG-ARPM
Welding/Gas - 200 psi - green - ARPM IP-7
Specifications
Application
A flexible hose for transporting oxygen.
For welding and cutting, for arc welding using shielding gas and related processes (Not suitable for LPG, MPS and CNG).
Standard/Approval
ARPM IP-7 Grade R
Temperature range
-40°F / +200°F
Safety factor
4 : 1

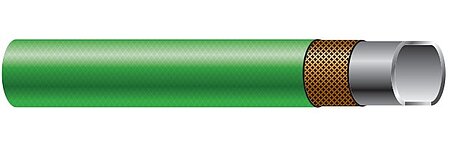

Tube
EPDM, black, smooth.
Reinforcement
Textile spiral.
Cover
EPDM, green, ribbed.
Marking
Continuous inkjet, white letters: "SEMPERIT (S) GOG - WELDING - OXYGEN – ID (inch) - ARPM IP-7 - GRADE R - MAX. WP 200 PSI - STANDARD DUTY - MM/YYYY - MADE IN EU //////".
Technical details
| Article number | Internal-Ø | Wall width | External-Ø | Work. pressure (max.) | Number of inserts | Bending radius (min.) | Weight approx. | Coil length (max.) | |
|---|---|---|---|---|---|---|---|---|---|
| mm | inch | mm | mm | psi | mm | kg/m | ft | ||
| 69412 0530 | 4.8 | 3/16 | 3.2 | 11.2 | 200 | 2 | 40 | 0.12 | 200 |
| 69412 0635 | 6.4 | 1/4 | 3.6 | 13.6 | 200 | 2 | 40 | 0.15 | 200 |
| 69412 0835 | 7.9 | 5/16 | 3.6 | 15.1 | 200 | 2 | 40 | 0.18 | 200 |
| 69412 0935 | 9.5 | 3/8 | 3.9 | 17.3 | 200 | 2 | 50 | 0.20 | 200 |
| 69412 1250 | 12.7 | 1/2 | 4.8 | 22.3 | 200 | 2 | 65 | 0.39 | 200 |
