FLEXIOIL-D

Fuel/Oil - D - EN1761

Specifications

Application

Flexioil D, the highly flexible delivery hose for filling and discharging tanks, petrol tankers with unleaded fuels (EN228:2017) with oxygen content limited according to EEC 85/536 and with an aromatic content of components 50% max.

Suitable for industrial oils, diesel oils (EN 590:2017), fuel oils (DIN 51 603 parts 1 - 5) and mineral-oil based hydraulic oils.

Also suitable for applications according to EN 12115 in the petrochemicals industry.

Feature

This hose has been tested according to the technical regulations for combustible liquids (TRbF) 131/2:1992.

Standard/Approval

EN 1761:1999, EN 12115:2021.

Temperature range

-30°C / +90°C.

Safety factor

4 : 1

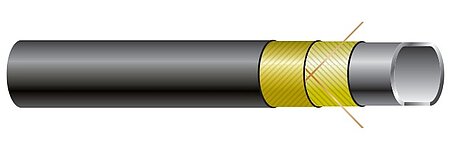

Tube

NBR, black, electrically conductive, smooth.

Reinforcement

Textile wrapped, 2 crossed copper wires.

Cover

CR, black, resistant to ozone and weather, abrasion resistant, resistant to oil, electrically conductive, cloth impression.

Marking

continuous mylartape, yellow letters: "SEMPERIT (S) FLEXIOIL Mineralöl/Oil D PN ... R < 106 Ohm", as well as continuous embossed tape according "SEMPERIT (S) FLEXIOIL EN 1761:1999 EN 12115:2021 TRbF 131/2 NBR1 D NW X PN 16 bar Ω/ T XQ/YY".

Notice

To ensure the assembly is leakproof, it must be tested according to EN 12115:2021.

Technical details

Article number Internal-Ø Wall width External-Ø Work. pressure (max.) Number of inserts Bending radius (min.) Weight approx. Coil length (max.)
mm inch mm mm bar mm kg/m m
64133 196019,03/46,031,01621000,7540
64133 256025,016,037,01621200,8540
64133 326032,01 1/46,044,01621501,0040
64133 386538,01 1/26,551,01621751,3040
64133 508050,08,066,01642251,9540
