Specifications
Application
Delivery hose for filling and discharging tanks, petrol tankers and ships with unleaded fuels (EN228:2017) with an aromatic content of components 50% max.
Suitable for industrial oils, diesel oils (EN 590:2017), fuel oils (DIN 51 603 parts 1 - 5) and mineral oil-based hydraulic oils.
Temperature range
-40°C / +90°C, oils +100°C.
Safety factor
3 : 1

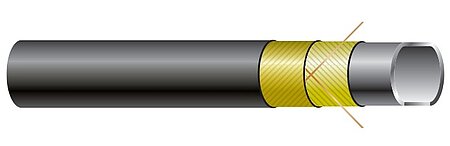

Tube
NBR, black, electrically conductive, smooth.
Reinforcement
Textile wrapped, 2 crossed copper wires.
Cover
SBR/EPDM, black, resistant to ozone and weather, abrasion resistant, resistant to oil (according SAE J517:2017), cloth impression.
Marking
continuous mylartape, yellow letters: "SEMPERIT (S) TM50 D OIL D WP 16 BAR Made in Europe".
Technical details
| Article number | Internal-Ø | Wall width | External-Ø | Work. pressure (max.) | Number of inserts | Bending radius (min.) | Weight approx. | Coil length (max.) | |
|---|---|---|---|---|---|---|---|---|---|
| mm | inch | mm | mm | bar | mm | kg/m | m | ||
| 48827 1655 | 16.0 | 3/8 | 5.5 | 27.0 | 16 | 2 | 70 | 0.50 | 40 |
| 48827 1960 | 19.0 | 3/4 | 6.0 | 31.0 | 16 | 2 | 90 | 0.65 | 40 |
| 48827 2560 | 25.0 | 1 | 6.0 | 37.0 | 16 | 2 | 160 | 0.80 | 40 |
| 48827 3060 | 30.0 | 6.0 | 42.0 | 16 | 2 | 200 | 0.95 | 40 | |
| 48827 3260 | 32.0 | 1 1/4 | 6.0 | 44.0 | 16 | 2 | 210 | 1.00 | 40 |
| 48827 3860 | 38.0 | 1 1/2 | 6.0 | 50.0 | 16 | 2 | 300 | 1.20 | 40 |
| 48827 4075 | 40.0 | 7.5 | 55.0 | 16 | 2 | 350 | 1.55 | 40 | |
| 48827 5075 | 50.0 | 7.5 | 65.0 | 16 | 2 | 400 | 1.90 | 40 | |
