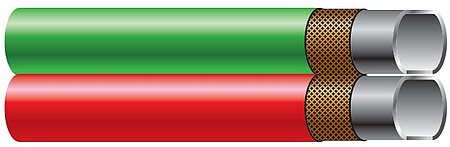

TWIN-G-ARPM
Welding/Gas - 200 psi - red/green - ARPM IP-7
Specifications
Application
Green hose – a flexible hose for transporting oxygen for welding and cutting, for arc welding using shielding gas and related processes.
Red hose – a flexible hose for transporting ONLY acetylene for welding and cutting, for arc welding using shielding gas and related processes. Also suitable for hydrogen, coal gas and carbon dioxide, argon, nitrogen for welding and cutting (not suitable for LPG, MPS and CNG).
Standard/approval
ARPM IP-7 Grade R
Temperature range
-40°F / +200°F
Safety factor
4 : 1
Tube
EPDM, black, smooth.
Reinforcement
Textile spiral.
Cover
EPDM, green and red, smooth.
Marking
continuous inkjet on red hose, white letters: "SEMPERIT (S) TWIN-G - WELDING - ACETYLEN ONLY - ID (inch) - ARPM IP-7 - GRADE R - MAX. WP 200 PSI - STANDARD DUTY - MM/YYYY - MADE IN EU //////".
Technical details
| Article number | Internal-Ø | Wall width | External-Ø | Work. pressure (max.) | Number of inserts | Bending radius (min.) | Weight approx. | Coil length (max.) | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Oxygen [mm] | Acetylene [mm] | Oxygen [mm] | Acetylene [mm] | mm | psi | mm | kg/m | ft | ||
| 69141 0505 | 4.8 | 4.8 | 3.15 | 3.15 | 11.1 | 200 | 2 | 40 | 0.28 | 200 |
| 69141 0606 | 6.4 | 6.4 | 3.55 | 3.55 | 13.5 | 200 | 2 | 40 | 0.33 | 200 |
| 69141 0808 | 7.9 | 7.9 | 3.60 | 3.60 | 15.1 | 200 | 2 | 40 | 0.37 | 200 |
| 69141 0909 | 9.5 | 9.5 | 3.60 | 3.60 | 16.7 | 200 | 2 | 50 | 0.43 | 200 |
