Specifications
Application
Suction and delivery hose for filling and discharging tanks, petrol tankers and ships with unleaded fuels (EN228:2017) with an aromatic content of components 50% max.
Suitable for industrial oils, diesel oils (EN 590:2017), fuel oils (DIN 51 603 parts 1 - 5) and mineral oil-based hydraulic oils.
Temperature range
-40°C / +90°C, oils +100°C.
Safety factor
3 : 1
Tube
NBR, black, electrically conductive, smooth.

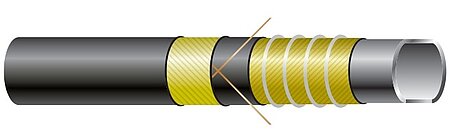

Reinforcement
Textile wrapped, zinc plated double steel wire helix (DN > 50,0 zinc plated steel wire helix), 2 crossed copper wires.
Cover
SBR/EPDM, black, resistant to ozone and weather, abrasion resistant, resistant to oil (according SAE J517:2017), cloth impression.
Marking
continuous mylartape, yellow letters: "SEMPERIT (S) TM30 PETROLEUM / OIL S&D WP 10 BAR Made in Europe".
Notice
On request available up to 61m lengths.
Technical details
| Article number | Internal-Ø | Wall width | External-Ø | Work. pressure (max.) | Number of inserts | Bending radius (min.) | Weight approx. | Coil length (max.) | |
|---|---|---|---|---|---|---|---|---|---|
| mm | inch | mm | mm | bar | mm | kg/m | m | ||
| 64816 1350 | 13.0 | 1/2 | 5.0 | 23.0 | 10 | 2 | 35 | 0.35 | 40 |
| 64816 1650 | 16.0 | 3/8 | 5.0 | 26.0 | 10 | 2 | 40 | 0.50 | 40 |
| 64816 1950 | 19.0 | 3/4 | 5.0 | 29.0 | 10 | 2 | 45 | 0.60 | 40 |
| 64816 2550 | 25.0 | 1 | 5.0 | 35.0 | 10 | 2 | 55 | 0.70 | 40 |
| 64816 3050 | 30.0 | 5.0 | 40.0 | 10 | 2 | 60 | 0.80 | 40 | |
| 64816 3250 | 32.0 | 1 1/4 | 5.0 | 42.0 | 10 | 2 | 65 | 0.90 | 40 |
| 64816 3550 | 35.0 | 5.0 | 45.0 | 10 | 2 | 75 | 1.00 | 40 | |
| 64816 3850 | 38.0 | 1 1/2 | 5.0 | 48.0 | 10 | 2 | 80 | 1.10 | 40 |
| 64816 4050 | 40.0 | 5.0 | 50.0 | 10 | 2 | 100 | 1.15 | 40 | |
| 64816 4555 | 45.0 | 5.5 | 56.0 | 10 | 2 | 120 | 1.25 | 40 | |
| 64816 5155 | 50.8 | 2 | 5.5 | 61.8 | 10 | 2 | 130 | 1.30 | 40 |
| 64816 6055 | 60.0 | 5.5 | 71.0 | 10 | 2 | 150 | 1.80 | 40 | |
| 64816 6360 | 63.5 | 2 1/2 | 6.0 | 75.5 | 10 | 2 | 180 | 2.00 | 40 |
| 64816 7060 | 70.0 | 6.0 | 82.0 | 10 | 2 | 330 | 2.40 | 40 | |
| 64816 7660 | 76.2 | 3 | 6.0 | 88.2 | 10 | 2 | 350 | 2.55 | 40 |
| 64816 9060 | 90.0 | 6.0 | 102.0 | 10 | 2 | 380 | 3.05 | 40 | |
| 64816 1070 | 101.6 | 4 | 7.0 | 115.4 | 10 | 2 | 400 | 3.90 | 40 |
| 64816 0585 | 127.0 | 5 | 8.5 | 144.0 | 10 | 2 | 600 | 5.00 | 40 |
| 64816 0690 | 152.4 | 6 | 9.0 | 170.4 | 10 | 2 | 800 | 7.60 | 40 |
Vacuum resistance up to -0.9 bar
